| In the world of CAD
mapping, one thing is virtually certain - Change And when changes are required, you can be faced with 100's of changes to Groups of drawings . |
| Our entire product line was designed from the ground up to deliver Full-On Automation and each tool is user configurable to allow virtually limitless editing possibilities. There is no faster, more productive or more cost effective editing method than One Pick automation. |
|
We can change the way you work everyday - Local Automation The Task at Hand - Our Automated Text Search and Replace tool offers over 1 million possible ways to find and modify text. Using MapTools automation tools, you can accomplish the whole job with just One Pick! |
||||
pick to enlarge |

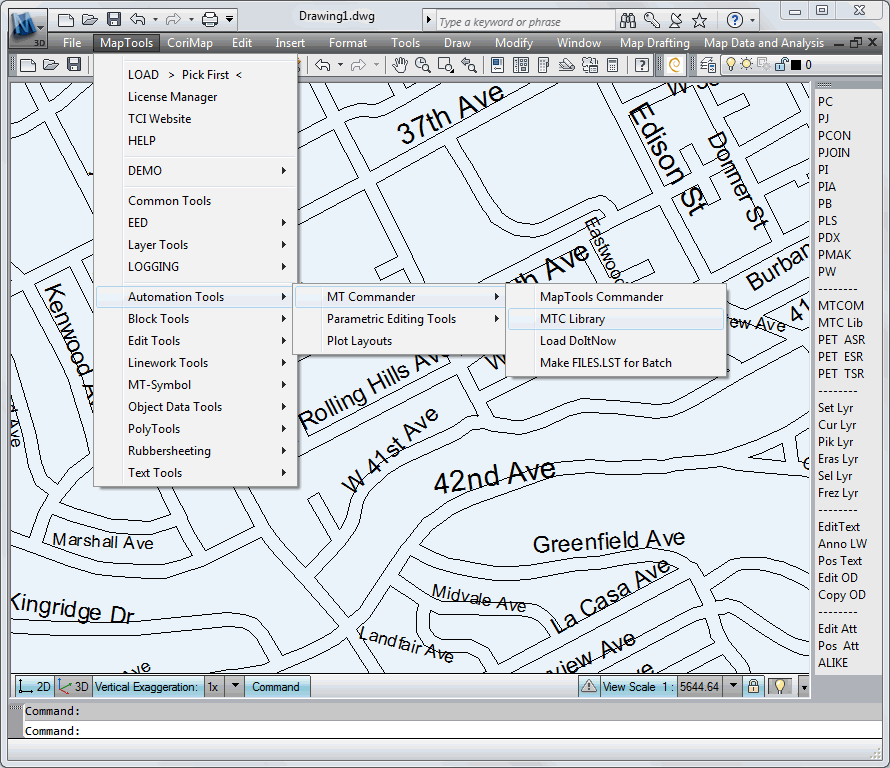

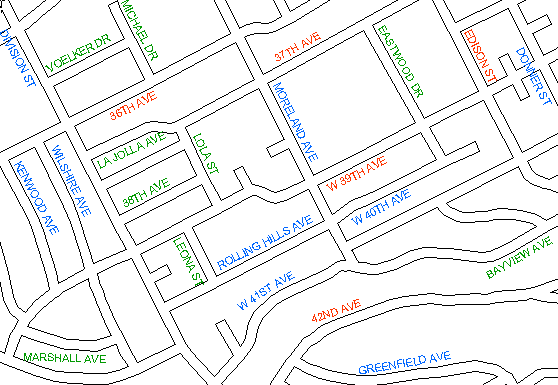

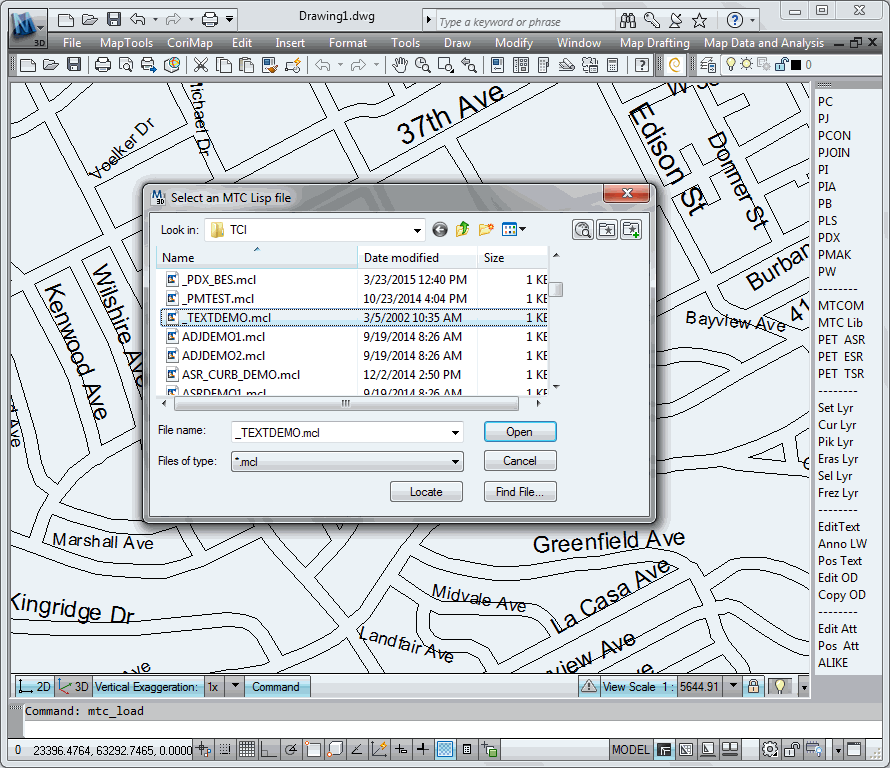

See the process with Slides Open the MapTools Commander Library Select the TEXTDEMO Command That's it - One Pick does it all! Here's the Result |
Watch a QuickTime Movie Running the TEXTDEMO Process (328K) Making the TEXTDEMO Command (2.0M)  Download QuickTime Player |
||
|
We can change the way you work even when you're not at work - GlobalAutomation Automated Linework Reconstruction The Task at Hand - This automation example uses 8 of the 18 automated processors included with MapTools Pro. We can process the current drawing OR we can apply the same process to a group of drawings using the Batch capability of MapTools Commander. 35 Automated operations with One Pick! |
||||

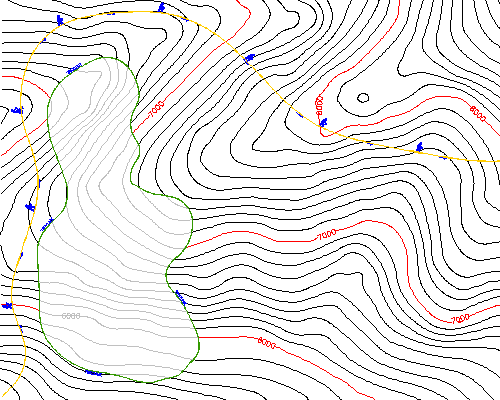

| Linework Reconstruction
pick to enlargeThe Linework Reconstruction process performs 35 separate instructions with One Pick. |
See the process with Slides . Select LW_RECON from your Automation Library . Join contour polylines - using line following and elevation limiting (not Layer limiting), . Create Index contours - clip around the labels and relayer the clipped linework, . Join, Smooth and Clip along the Treeline - and relayer the contours "inside". . Linework Labeling and Symbolizing - Text labels use Smart Rotation (they are never upside down) . Curvefit Processing - The finished drawing is 6X smaller (before) - (after) . Here's the Final Result |
Watch a Movie Running the LWRECON Process (2.0M) Defining and Running a Batch - Apply LWRECON to a group (3.0M) |
||
|
Do you need an automated way to enforce your drawing standards Automated Feature Conversion The Task at Hand - This automation example performs 40 operations, using mostly PET to search for entities based on their properties and change properties to meet a different standard. |
||||

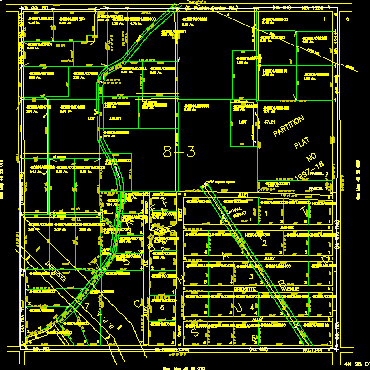

| The Original Drawing

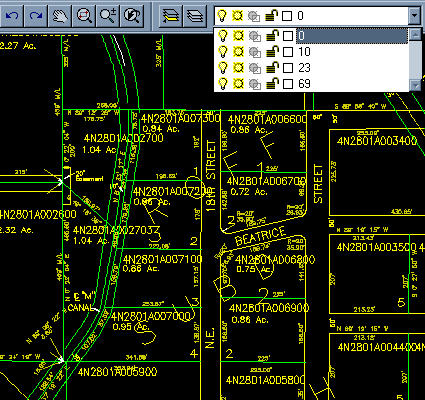

pick to enlarge Pick Here to Zoom In Notice - There are only 4 Layers |

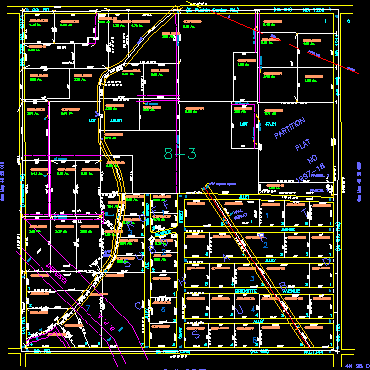

The Finished Drawing .

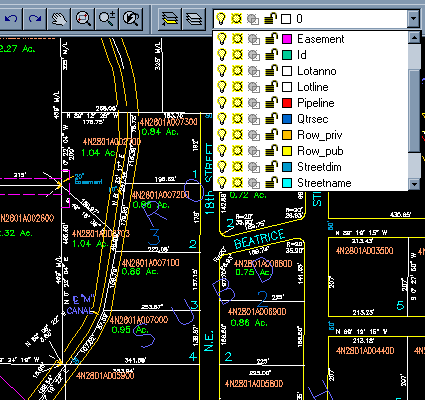

pick to enlarge Pick Here to Zoom In |
Watch a Movie Performing the Feature Conversion with MapTools Commander (800K) |
||
